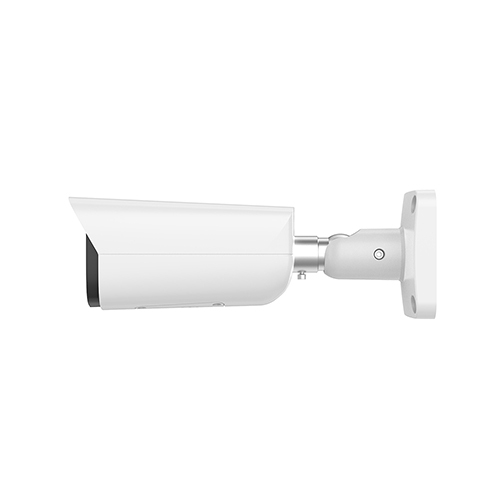

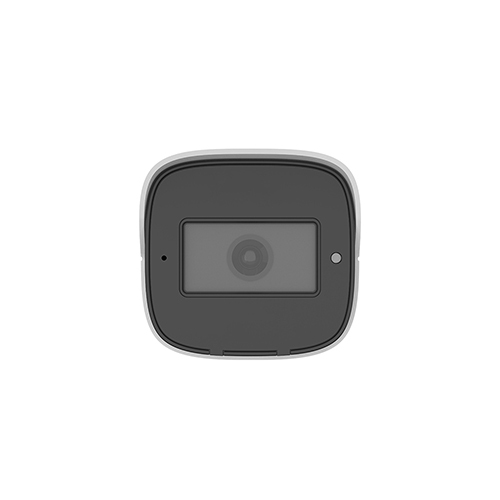

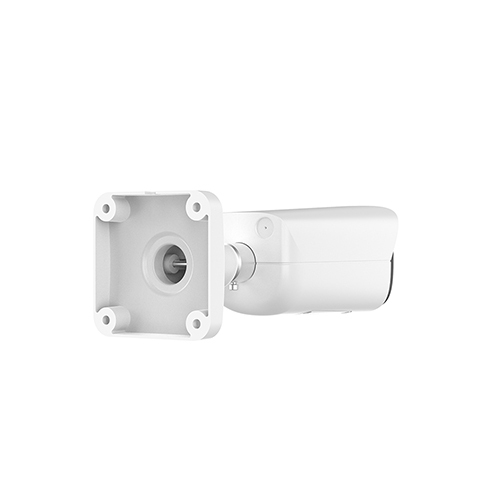

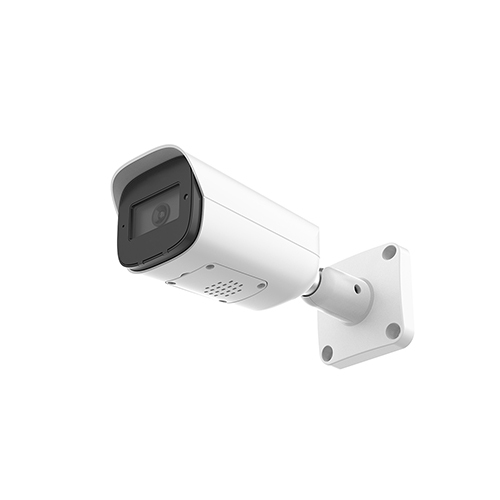

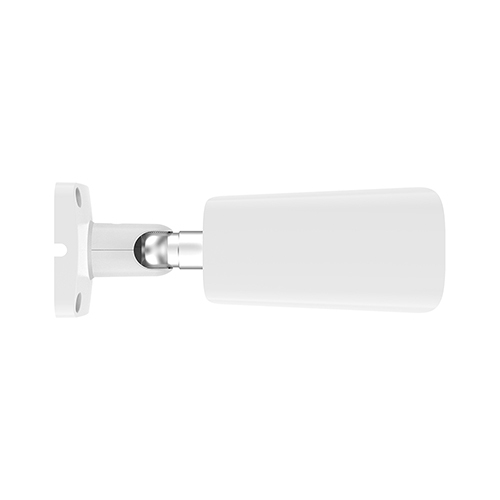

Name: 12MP/8MP/5MP/2MP Fixed Bullet EiZMind IR Network Camera
Brand: Brovotech Your Reliable IP Video Surveillance Solutions ODM/OEM Partner
SKU: IPC-MGA-7X00
Availability: InStock
Rating: 5 (1 reviews)

Home > EiZMind Series > IR Cameras

12MP/8MP/5MP/2MP Fixed Bullet EiZMind IR Network Camera

Description Specification Dimensions(mm)

Description

> Adopts 12MP/8MP/5MP/2MP progressive CMOS, provides 12MP 30FPS/8MP 30FPS/5MP 50FPS/2MP 60FPS Stream.

> 140dB WDR, 0.001 Lux min. illumination.

> 2.8/3.6mm fixed lens.

> 6pcs of array IR, IR distance up to 50m.

> PoE&DC12V.

> Built-in waterproof high quality microphone (-32dB).

> Built-in micro SD slot for local recording, supporting Max. 256GB.

> Built-in hardware reset.

> Audio 1in/1out, alarm 1in/1out.

> IP67&IK10, -50°C ~65°C working temperature.

> Customizable Video Analysis Based on AI ISP, with Highest Accuracy:

Enabled AI Package as default: Face Recognition, Human/Face/Vehicle Detection, People Counting/Opposite Direction Detection, Smart Motion Detection/Linecrossing Detection/Intrusion Detection.

Customized based on detailed requirements: License Plate Recognition, Special Object Recognition such as birds, Fall Down Detection, Fire and Smoke Detection, Abnormal Video Detection, Abnormal Audio Detection, Motor Vehicle Detection, Non-Motor Vehicle Detection.

Specification


Model	IPC-MGA-71200	IPC-MGA-7800	IPC-MGA-7500	IPC-MGA-7200
Camera
Main Solution	SSC379G-S+OS 12D	SSC379G+IMX415	SSC379G+IMX675	SSC379G+IMX462
Image Sensor CMOS	1/2.49’’ 12Megapixel	1/2.8’’ 8Megapixel	1/2.8’’ 5Megapixel	1/2.8’’ 2Megapixel
Effective Pixels	4512*2496	3840*2160	2592*1944	1920*1080
Min. Illumination	0.001Lux @ (F1.8, AGC ON), 0 Lux with IR ON
Shutter	1/2s-1/50,000s
Lens	2.8/3.6mm fixed lens optional
Day&Night	IR-CUT Auto Switch, Manual Switch, Timing Switch
DNR	3D Digital Noise Reduction
WDR	Yes, real WDR 140dB
Compression Standard
Codec	H.265+/H.264+/H.265/H.264/MJPEG.
Data Rate -Main	256-16000kbps	256-16000kbps	256-12000kbps	256-8192kbps
Data Rate -Sub	50-2048kbps	50-2048kbps	50-2048kbps	50-2048kbps
Audio Compression	G.711A/G.711U/AAC/PCM/G.726
Audio Record	Yes
Max. Resolution	12MP(4512*2512)	8MP(3840*2160)	5MP(2592*1944)	2MP(1920*1080)
Frame Rate	30FPS	30FPS	50FPS	60FPS
Features	DWDR, 3D DNR, AGC, MGC, AWB, ROI, Motion Detection, Privacy Masking
Image Adjustment	Mirroring, Saturation, Brightness, Sharpness, Contrast Adjustment, Exposure, DWDR, Shutter, IRIS, LDC etc.
Network
Protocols	TCP/IP, UDP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP; SNMP v1/v2/v3, IEEE802.1X, IPv4/v6; Bonjour; SIP, ICMP, IGMP, QoS, SSL/TLS;
Compatibility	ONVIF (Profile S/Profile G/ Profile T); CGI;
	HIKVISION/Dahua/XM;
	RTMP, RTSP, NFS, VoIP, TS streaming
	HTTP Streaming/HTTP Notification
AI Features	Customizable Video Analysis Based on AI ISP, with Highest Accuracy: Enabled AI Package as default: Face Recognition, Human/Face/Vehicle Detection, People Counting/Opposite Direction Detection, Smart Motion Detection/Linecrossing Detection/Intrusion Detection.


	Customized based on detailed requirements: License Plate Recognition, Special Object Recognition such as birds, Fall Down Detection, Fire and Smoke Detection, Abnormal Video Detection, Abnormal Audio Detection, Motor Vehicle Detection, Non-Motor Vehicle Detection.

Interface
Network	RJ-45 LAN Port
POE	Yes, Built-in POE
Audio	Built-in Microphone, line audio 1in/1out
Alarm	Alarm in/out
Local Recording	Built-in micro SD slot for local recording, supporting max. 256GB
Hardware Reset	Yes, Built-in reset button
General
Color	White
Accessories	Printed User Manual, Installation Kits, CD or Download Link QR Code Stickers
Power Supply	PoE&DC12V
Work Humidity	10%-90%
Operation Temperature	-50℃-65℃
Surge Protection	External/Built-in SPD
Proof	Metal; IP67&IK10; for both indoor & outdoor.
Power Consumption	Max. 17W
Size	197.162.766.1mm
Weight	N.W.: 520g, G.W.: 620g
* We may adopt the backup solution when the main solution chipset is in shortage.
We reserve the right to change products and specifications without prior notice. This information does not convey any license by any implication or otherwise under any patents or other rights.

Dimensions(mm)
