NVR4400-X Series 16/32 Ch 4HDD 4K&H.265 Pro NVR

Item No.: NVR4400-X Series
16/32 Channel 2U 4HDD 12MP&H.265 Network Video Recorder
  • Channel:
    16-CH No PoE
    32-CH No PoE
Description Specification Dimensions(mm)
Description

       Features:

-Support Ultra 265/H.265/H.264 video formats

-16/32-channel input

-Plug&play with our own IP cameras

-Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T and RTSP protocols

-Support 2-ch HDMI, 1-ch VGA. HDMI up to 4K (3840x2160) resolution

-HDMI and VGA independent outputs provided

-Up to 12 Megapixels resolution recording

-4 SATA HDDs, each up to 10TB

-Support RAID 1, 5

-Support cloud upgrade

-Perimeter Protection: Tripwire/Intrusion by human or vehicle

Specification
Model NVR4416X NVR4432X
Video/Audio Input
IP Video Input 16-ch 32-ch
Audio Input 1-ch, RCA
Network
Incoming Bandwidth 384Mbps
Outgoing Bandwidth 384Mbps
Remote Users 128
Protocols TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP
Browser IE(IE10/11) for Windows
Firefox (version 52.0 and above) for Windows
Chrome (version 45 and above) for Windows
Edge (version 79 and above) for Windows
Video/Audio Output
IP Video Output HDMI: 4K (3840x2160) @30, 1920x1080p@60, 1920x1080p@50, 1280x1024@60, 1280x720@60, 1024x768@60
VGA: 1920x1080p@60, 1920x1080p@50, 1600x1200@60, 1280x1024@60, 1280x720@60, 1024x768@60
Recording Resolution 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output 1-ch, RCA
Audio Compression G.711A, G.711U
Synchronous Playback 16-ch
Liveview display 1/4/6/8/9/16 1/4/6/8/9/16/25/36
Corridor Mode Screen 3/4/5/7/9/10/12/16 3/4/5/7/9/10/12/16/32
Decoding
Decoding format Ultra 265, H.265, H.264
Live view/Playback 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability 2 x 12MP@30, 2 x 12MP@30,
4 x 4K@30, 4 x 4K@30,
8 x 4MP@30, 8 x 4MP@30,
9 x 4MP@25, 9 x 4MP@25,
16 x 1080p@30 16 x 1080p@30,
  32 x 960p@25
Smart
VCA Detection by Camera Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Defocus Detection, Scene Change Detection, Auto Tracking, Object Left Behind, Object Removed, Vehicle Control
VCA Search Behavior Search, Vehicle Search
Smart Intrusion Prevention (SIP) by Camera 16-ch
General Alarm
General Alarm Motion, Tampering, Human Body Detection, Video Loss, Alarm Input
Alert Alarm IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
Interface
SATA 4 SATA each up to 10TB
Network 2 RJ45 10M/100M/1000M
POE N/A
USB Front panel: 2 x USB2.0, Rear panel: 1 x USB3.0
RS232 1
RS485 1
Alarm 16in/4out
RAID RAID 1,5
General
Power Supply AC 100~240V
Working Environment -10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing)
Dimensions (W×D×H) 400mm × 363mm × 74mm (15.7" × 14.3"× 2.9")
Weight (without HDD) G.W.: 6.2KG, N.W.: 5.7KG
We reserve the right to change products and specifications without prior notice. This information does not convey any license by any implication or otherwise under any patents or other rights.

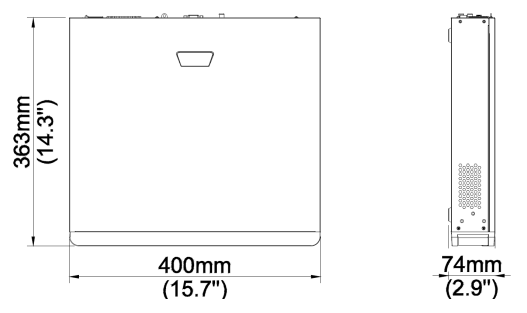

Dimensions(mm)
