Features:
- Support Ultra 265/H.265/H.264 video formats
- 16/32-channel input
- For POE models, Plug & Play with 16 independent PoE network interfaces
- Plug&play with our own IP cameras
- Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
- Support 1-ch HDMI, 1-ch VGA. HDMI up to 4K (3840x2160) resolution
- HDMI and VGA independent outputs provided
- Up to 12 Megapixels resolution recording
- 4 SATA HDDs, each up to 10TB
- Support RAID 1, 5
- Support cloud upgrade
- Perimeter Protection: Tripwire/Intrusion by human or vehicle
| Model | NVR4416E2 | NVR4432E2 | NVR4416-P16E2 | NVR4432-P16E2 |
| Video/Audio Input | ||||
| IP Video Input | 16-ch | 32-ch | 16-ch | 32-ch |
| Audio Input | 1-ch, RCA | |||
| Network | ||||
| Incoming Bandwidth | 320Mbps | |||
| Outgoing Bandwidth | 320Mbps | |||
| Remote Users | 128 | |||
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP | |||
| Browser | IE(IE10/11) for Windows | |||
| Firefox (version 52.0 and above) for Windows | ||||
| Chrome (version 45 and above) for Windows | ||||
| Edge (version 79 and above) for Windows | ||||
| Video/Audio Output | ||||
| IP Video Output | HDMI: 4K (3840x2160) @30, 1920x1080p@60, 1920x1080p@50, 1280x1024@60, 1280x720@60, 1024x768@60 | |||
| VGA: 1920x1080p@60, 1920x1080p@50, 1600x1200@60, 1280x1024@60, 1280x720@60, 1024x768@60 | ||||
| Recording Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | |||
| Audio Output | 1-ch, RCA | |||
| Audio Compression | G.711A, G.711U | |||
| Synchronous Playback | 16-ch | |||
| Liveview display | 1/4/6/8/9/16 | 1/4/6/8/9/16/25/36 | 1/4/6/8/9/16 | 1/4/6/8/9/16/25/36 |
| Corridor Mode Screen | 3/4/5/7/9/10/12/16 | 3/4/5/7/9/10/12/16/32 | 3/4/5/7/9/10/12/16 | 3/4/5/7/9/10/12/16/32 |
| Decoding | ||||
| Decoding format | Ultra 265, H.265, H.264 | |||
| Live view/Playback | 4K/5MP/4MP/3MP/1080P/960P/720P/D1/2CIF/CIF | |||
| Capability | 1 x 12MP@30, | 1 x 12MP@30, | 1 x 12MP@30, | 1 x 12MP@30, |
| 2 x 4K@30, | 2 x 4K@30, | 2 x 4K@30, | 2 x 4K@30, | |
| 5 x 4MP@30, | 5 x 4MP@30, | 5 x 4MP@30, | 5 x 4MP@30, | |
| 10 x 1080P@30, | 10 x 1080P@30, | 10 x 1080P@30, | 10 x 1080P@30, | |
| 16 x 720P@30 | 22 x 720P@30, | 16 x 720P@30 | 22 x 720P@30, | |
| 32 x D1 | 32 x D1 | |||
| Smart | ||||
| VCA Detection by Camera | Human Detection, Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Audio Detection | |||
| VCA Search | Behavior Search | |||
| Smart Intrusion Prevention (SIP) by Camera | 8-ch | |||
| General Alarm | ||||
| General Alarm | Motion, Tampering, Human Body Detection, Video Loss, Alarm Input | |||
| Alert Alarm | IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal | |||
| Interface | ||||
| SATA | 4 SATA each up to 10TB | |||
| Network | 2 RJ45 10M/100M/1000M | 1 RJ45 10M/100M/1000M | ||
| POE | N/A | 16 RJ45 10M/100M | ||
| USB | Front panel: 1 x USB2.0, Rear panel: 1 x USB2.0 1 x USB3.0 | Front panel: 1 x USB2.0, Rear panel: 1 x USB3.0 | ||
| RS232 | N/A | |||
| RS485 | 1 | |||
| Alarm | 16in/4out | |||
| RAID | RAID 1,5 | |||
| General | ||||
| Power Supply | DC12V | AC 100~240V | ||
| Working Environment | -10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing) | |||

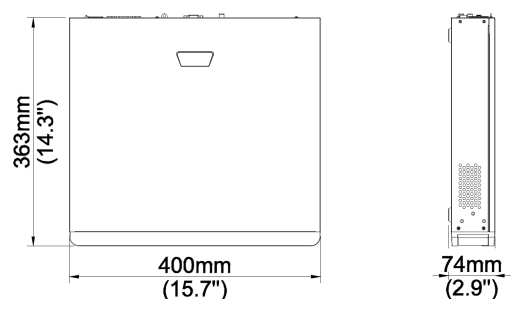

| Dimensions (W×D×H) | 400mm × 363mm × 74mm (15.7" × 14.3"× 2.9") | |||
| Weight (without HDD) | G.W.: 3.2KG, N.W.: 3.0KG | G.W.: 4.2KG, N.W.: 4.0KG | ||
| We reserve the right to change products and specifications without prior notice. This information does not convey any license by any implication or otherwise under any patents or other rights. | ||||
