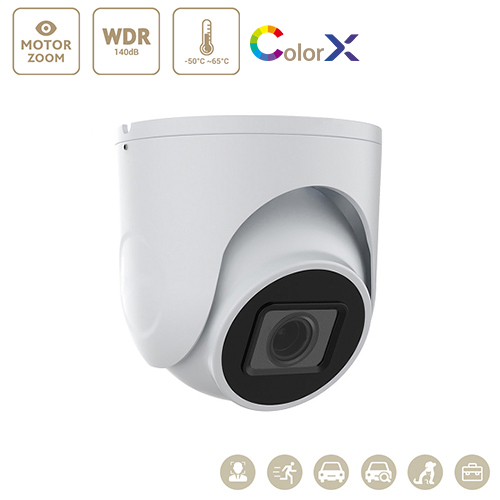

8MP/5MP Motorized Dome EiZMind Super Starlight Camera

Item No.: IPC-MH7-8X01-ZA
> 140dB WDR, 0.0001 Lux min. illumination, H.265+/H.264+/H.265/H.264/MJPEG.
> F1.0, 1/1.8'' 2.7-13.5mm motorized lens with auto Iris, distance 70m.
> POE&DC12V, built-in mic, micro SD slot, hardware reset.
> Audio in/out, alarm in/out.
> IP67&IK10, -50°C ~65°C working temperature.
> Customizable Video Analysis Based on AI ISP, with Highest Accuracy.
  • Resolution:
    8MP 30FPS
    5MP 50FPS
Description Specification Dimensions(mm)
Description

> Adopts 8MP/5MP progressive CMOS, provides 8MP 30FPS/5MP 50FPS Stream.

> 140dB WDR, 0.0001Lux min. illumination.

> F1.0, 2.7-13.5mm motorized lens with auto Iris.

> No LED, visual 70m

> PoE&DC12V.

> Built-in waterproof high quality microphone (-32dB).

> Built-in micro SD slot for local recording, supporting Max. 256GB.

> Built-in hardware reset.

> Audio 1in/1out, alarm 1in/1out.

> IP67&IK10, -50°C ~65°C working temperature.

Customizable Video Analysis Based on AI ISP, with Highest Accuracy:

Enabled AI Package as default: Face Recognition, Human/Face/Vehicle Detection, People Counting/Opposite Direction Detection, Smart Motion Detection/Linecrossing Detection/Intrusion Detection.

Customized based on detailed requirements: License Plate Recognition, Special Object Recognition such as birds, Fall Down Detection, Fire and Smoke Detection, Abnormal Video Detection, Abnormal Audio Detection, Motor Vehicle Detection, Non-Motor Vehicle Detection.

Specification

Model IPC-MH7-8801-ZA IPC-MH7-8501-ZA
Camera
Main Solution SSC379G+IMX678 SSC379G+SC450AI
Image Sensor CMOS 1/1.8’’ 8Megapixel 1/1.8’’ 5Megapixel
Effective Pixels 3840*2160 2592*1944
Min. Illumination  0.0001Lux @ (F1.2, AGC ON)
Shutter 1/2s-1/50,000s
Lens F1.0, 2.7-13.mm motorized lens with auto Iris
Day&Night Always colorful image even in quite low lux. conditions
DNR 3D Digital Noise Reduction
WDR Yes, real WDR 140dB
Compression Standard
Codec H.265+/H.264+/H.265/H.264/MJPEG.
Data Rate -Main 256-16000kbps 256-12000kbps
Data Rate -Sub 50-2048kbps 50-2048kbps
Audio Compression G.711A/G.711U/AAC/PCM/G.726
Audio Record Yes
Max. Resolution 8MP(3840*2160) 5MP(2592*1944)
Frame Rate 30FPS 50FPS
Features DWDR, 3D DNR, AGC, MGC, AWB, ROI, Motion Detection, Privacy Masking
Image Adjustment Mirroring, Saturation, Brightness, Sharpness, Contrast Adjustment, Exposure, DWDR, Shutter, IRIS, LDC etc.
Network
Protocols TCP/IP, UDP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP; SNMP v1/v2/v3, IEEE802.1X, IPv4/v6; Bonjour; SIP, ICMP, IGMP, QoS, SSL/TLS;
Compatibility ONVIF (Profile S/Profile G/ Profile T); CGI;
HIKVISION/Dahua/XM;
RTMP, RTSP, NFS, VoIP, TS streaming
HTTP Streaming/HTTP Notification
AI Features

Customizable Video Analysis Based on AI ISP, with Highest Accuracy:

Enabled AI Package as default: Face Recognition, Human/Face/Vehicle Detection, People Counting/Opposite Direction Detection, Smart Motion Detection/Linecrossing Detection/Intrusion Detection.

Customized based on detailed requirements: License Plate Recognition, Special Object Recognition such as birds, Fall Down Detection, Fire and Smoke Detection, Abnormal Video Detection, Abnormal Audio Detection, Motor Vehicle Detection, Non-Motor Vehicle Detection.
Interface
Network RJ-45 LAN Port
POE Yes, Built-in POE
Audio Built-in Microphone, line audio 1in/1out
Alarm Alarm in/out
Local Recording Built-in micro SD slot for local recording, supporting max. 256GB
Hardware Reset Yes, Built-in reset button
General
Color White
Accessories Printed User Manual, Installation Kits, CD or Download Link QR Code Stickers
Power Supply PoE&DC12V
Work Humidity 10%-90%
Operation Temperature -50-65
Surge Protection External/Built-in SPD
Proof Metal; IP67&IK10; for both indoor & outdoor.
Power Consumption Max. 17W
Size 93*92.2*84.68mm
Weight N.W.: 460g, G.W.: 560g
* We may adopt the backup solution when the main solution chipset is in shortage.
We reserve the right to change products and specifications without prior notice. This information does not convey any license by any implication or otherwise under any patents or other rights.
Dimensions(mm)
