> Adopts 8MP/5MP/2MP progressive CMOS, provides 8MP 15FPS/5MP 30FPS/2MP 30FPS Stream.
> WDR 120dB, 0.005 Lux min. illumination.
> 2.7-13.5mm motorized lens.
> 4pcs of array IR, IR distance up to 60m.
> PoE&DC12V.
> Built-in waterproof high quality microphone (-32dB).
> Built-in micro SD slot for local recording, supporting Max. 128GB.
> Built-in hardware reset.
> IP67&IK10, -40°C ~60°C working temperature.
> Smart Detection based on CV
Detection: Human/Vehicle Detection
Perimeter Protection: Tripwire/Intrusion by human or vehicle
Smart MD: Motion/Human/Vehicle
| Model | IPC-MG2P-3831-Z | IPC-MG2P-3531-Z | IPC-MG2P-3231-Z |
| Camera | |||
| Main Solution | SSC328+IMX415 | SSC337DE+IMX335 | SSC335+SC200AI |
| Image Sensor CMOS | 1/2.8’’ 8Megapixel | 1/2.8’’ 5Megapixel | 1/2.8’’ 2Megapixel |
| Effective Pixels | 3840*2160 | 2560*1920 | 1920*1080 |
| Min. Illumination | 0.005Lux @ (F1.2, AGC ON), 0 Lux with IR ON | ||
| Shutter | 1/2s-1/50,000s | ||
| Lens | 2.7-13.5mm motorized lens | ||
| Day&Night | ICR, Smart IR, Controllable IR LEDs | ||
| DNR | 3D Digital Noise Reduction | ||
| WDR | Yes, real WDR 120dB | ||
| Compression Standard | |||
| Codec | H.265+/H.264+/H.265/H.264/MJPEG. | ||
| Data Rate -Main | 256-16000kbps | 256-8000kbps | 256-8000kbps |
| Data Rate -Sub | 50-1000kbps | 50-1000kbps | 50-1000kbps |
| Audio Compression | G.711A/G.711U/AAC/PCM/G.726 | ||
| Audio Record | Yes | ||
| Image | |||
| Max. Resolution | 8MP(3840*2160) | 5MP(2560*1920) | 2MP(1920*1080) |
| Frame Rate | 15FPS | 30/25FPS | 30/25FPS |
| Features | DWDR, 3D DNR, AGC, MGC, AWB, ROI, Motion Detection, Privacy Masking | ||
| Image Adjustment | Mirroring, Saturation, Brightness, Sharpness, Contrast Adjustment, Exposure, DWDR, Shutter, IRIS, LDC etc. | ||
| Network | |||
| Protocols | TCP/IP, UDP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP; SNMP v1/v2/v3, IEEE802.1X, IPv4/v6; Bonjour; SIP, ICMP, IGMP, QoS, SSL/TLS; | ||
| Compatibility | ONVIF (Profile S/Profile G/ Profile T); CGI; HIKVISION/Dahua/XM; RTMP, RTSP, NFS, VoIP, TS streaming HTTP Streaming/HTTP Notification |
||
| AI Features | Smart Detection based on CV Detection: Human/Vehicle Detection Perimeter Protection: Tripwire/Intrusion by human or vehicle Smart MD: Motion/Human/Vehicle |
||
| Interface | |||
| Network | RJ-45 LAN Port | ||
| POE | Yes, Built-in POE | ||
| Audio | Built-in Microphone | ||
| Local Recording | Built-in micro SD slot for local recording, supporting max. 128GB | ||
| Hardware Reset | Yes, Built-in reset button | ||
| General | |||
| Color | White | ||
| Accessories | Printed User Manual, Installation Kits, CD or Download Link QR Code Stickers | ||
| Power Supply | PoE&DC12V | ||
| Work Humidity | 10%-90% | ||
| Operation Temperature | -40℃-60℃ | ||
| Surge Protection | External/Built-in SPD | ||
| Proof | Metal; IP67&IK10; for both indoor & outdoor. | ||
| Power Consumption | Max. 10W | ||

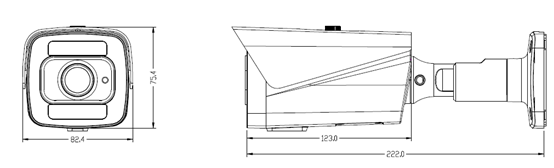

| Size | 233.4*77.5*80mm | ||
| Weight | N.W.: 850g, G.W.: 1000g | ||
| * We may adopt the backup solution when the main solution chipset is in shortage. We reserve the right to change products and specifications without prior notice. This information does not convey any license by any implication or otherwise under any patents or other rights. |
|||
