5MP/2MP Plastic Fixed Bullet Lite IR Network Camera

Item No.: IPC-xC2-1x00
> WDR, 0.01 Lux min. illumination, H.265/H.264/MJPEG.
> 2.8mm/3.6mm fixed lens, IR distance max. 25m.
> POE&DC12V.
> IP66, -30°C ~50°C working temperature.
> Smart Detection based on CV.
  • Resolution:
    5MP 25FPS
    2MP 30FPS
Description Specification Dimensions (mm)
Description

> Adopts 5MP/2MP progressive CMOS, provides 5MP 25FPS/2MP 30FPS Stream.

> WDR, 0.01 Lux min. illumination.

> 2.8mm/3.6mm fixed lens.

> 4pcs of array IR, IR distance up to 25m.

> PoE&DC12V.

> IP66, -30°C ~50°C working temperature.

> Smart Detection based on CV

    Detection: Human/Vehicle Detection

    Perimeter Protection: Tripwire/Intrusion by human or vehicle

    Smart MD: Motion/Human/Vehicle

Specification

Model IPC-TC2-1500 IPC-TC2-1200
Camera
Main Solution T31X+GC4653 T31N+GC2063 (No Corridor)
Image Sensor CMOS 1/3’’ 4Megapixel 1/2.9’’ 2Megapixel
Effective Pixels 2560*1920 1920*1080
Min. Illumination  0.01Lux @ (F1.2, AGC ON), 0 Lux with IR ON
Shutter 1/2s-1/50,000s
Lens 2.8mm/3.6mm fixed lens optional
Day&Night ICR, Smart IR, Controllable IR LEDs
DNR 3D Digital Noise Reduction
WDR Yes, digital WDR
Compression Standard
Codec H.265/H.264/MJPEG.
Data Rate -Main 256-8000kbps 256-8000kbps
Data Rate -Sub 50-1000kbps 50-1000kbps
Audio Compression G.711A/G.711U/AAC/PCM/G.726
Audio Record Yes
Max. Resolution 5MP(2560*1920) 2MP(1920*1080)
Frame Rate 25FPS 30FPS
Features DWDR, 3D DNR, AGC, MGC, AWB, ROI, Motion Detection, Privacy Masking
Image Adjustment Mirroring, Saturation, Brightness, Sharpness, Contrast Adjustment, Exposure, DWDR, Shutter, IRIS, LDC etc.
Network
Protocols TCP/IP, UDP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP; SNMP v1/v2/v3, IEEE802.1X, IPv4/v6; Bonjour; SIP, ICMP, IGMP, QoS, SSL/TLS;
Compatibility ONVIF (Profile S/Profile G/ Profile T); CGI;
HIKVISION/Dahua/XM;
RTMP, RTSP, NFS, VoIP, TS streaming
HTTP Streaming/HTTP Notification
AI Features Smart Detection based on CV
Detection: Human/Vehicle Detection
Perimeter Protection: Tripwire/Intrusion by human or vehicle
Smart MD: Motion/Human/Vehicle
Interface
Network RJ-45 LAN Port
POE Yes, Built-in POE
General
Color White
Accessories Printed User Manual, Installation Kits, CD or Download Link QR Code Stickers
Power Supply PoE&DC12V
Work Humidity 10%-90%
Operation Temperature -30℃-50℃
Surge Protection External/Built-in SPD
Proof Plastic; IP66;
Power Consumption Max. 6W
Size 161.2*74*74mm
Weight N.W.: 270g, G.W.: 350g
* We may adopt the backup solution when the main solution chipset is in shortage.
We reserve the right to change products and specifications without prior notice. This information does not convey any license by any implication or otherwise under any patents or other rights.

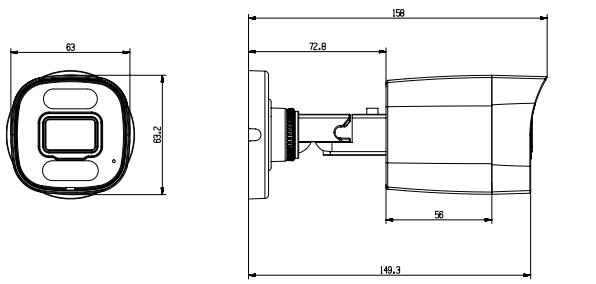

Dimensions (mm)
