> Adopts 8MP/5MPprogressive CMOS, provides 8MP 30FPS/5MP 30FPS Stream.
>140dB WDR, 0.001 Lux min. illumination.
> F1.0, 1/1.8"2.8mm/3.6mm fixed lens
> No LED, visual 40m.
> PoE&DC12V.
> Built-in waterproof high quality microphone (-32dB).
> Built-in micro SD slot for local recording, supporting Max. 512GB.
> Built-in hardware reset.
> Audio 1in/1out, alarm 1in/1out.
> IP67&IK10, -40°C ~60°C working temperature.
> AI Package Based on AI ISP with Highest Accuracy:
Human Detection, Face Detection, Vehicle Detection, Smart Motion Detection, Line crossing Detection, Intrusion Detection, People Counting, Loitering Detection, Opposite Direction Detection, Face Recognition
| Model | IPC-MGA-6860-SFC | IPC-MGA-6560-SFC |
| Camera | ||
| Main Solution | SSC378QE+IMX678 | SSC378QE+SC450AI |
| Image Sensor CMOS | 1/1.8’’ 8Megapixel | 1/1.8’’ 5Megapixel |
| Effective Pixels | 3840*2144 | 2592*1920 |
| Min. Illumination | 0.001Lux @ (F1.2, AGC ON) | |
| Shutter | 1/2s-1/50,000s | |
| Lens | F1.0, 1/1.8"2.8mm/3.6mm fixed lens | |
| Day&Night |
Always colorful image even in quite low lux. conditions |
|
| DNR | 3D Digital Noise Reduction | |
| WDR | Yes, real WDR 140dB | |
| Compression Standard | ||
| Codec | H.265+/H.264+/H.265/H.264/MJPEG. | |
| Data Rate -Main | 256-16000kbps | 256-8000kbps |
| Data Rate -Sub | 50-1000kbps | 50-2048kbps |
| Audio Compression | G.711A/G.711U/AAC/PCM/G.726 | |
| Audio Record | Yes | |
| Image | ||
| Max. Resolution | 8MP(3840*2144) | 5MP(2592*1920) |
| Frame Rate | 30FPS | 30FPS |
| Features | WDR, 3D DNR, AGC, MGC, AWB, ROI, Motion Detection, Privacy Masking | |
| Image Adjustment | Mirroring, Saturation, Brightness, Sharpness, Contrast Adjustment, Exposure, WDR, Shutter, IRIS, LDC etc. | |
| Network | ||
| Protocols | TCP/IP, UDP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP; SNMP v1/v2/v3, IEEE802.1X, IPv4/v6; Bonjour; SIP, ICMP, IGMP, QoS, SSL/TLS; | |
| Compatibility | ONVIF (Profile S/Profile G/ Profile T); CGI; | |
| HIKVISION/Dahua/XM; | ||
| RTMP, RTSP, NFS, VoIP, TS streaming | ||
| HTTP Streaming/HTTP Notification | ||
| AI Features |
AI Package Based on AI ISP with Highest Accuracy: Human Detection, Face Detection, Vehicle Detection, Smart Motion Detection, Line crossing Detection, Intrusion Detection, People Counting, Loitering Detection, Opposite Direction Detection, Face Recognition |
|
| Interface | ||
| Network | RJ-45 LAN Port | |
| POE | Yes, Built-in POE | |
| Audio | Built-in Microphone, line audio 1in/1out | |
| Alarm | Alarm in/out | |
| Local Recording | Built-in micro SD slot for local recording, supporting max. 512GB | |
| Hardware Reset | Yes, Built-in reset button | |
| General | ||
| Color | White | |
| Accessories | Printed User Manual, Installation Kits, CD or Download Link QR Code Stickers | |
| Power Supply | PoE&DC12V | |
| Work Humidity | 10%-90% | |
| Operation Temperature | -40℃-60℃ | |
| Surge Protection | External/Built-in SPD | |
| Proof | Metal; IP67&IK10; for both indoor & outdoor. | |
| Power Consumption | Max. 17W | |
| Size |

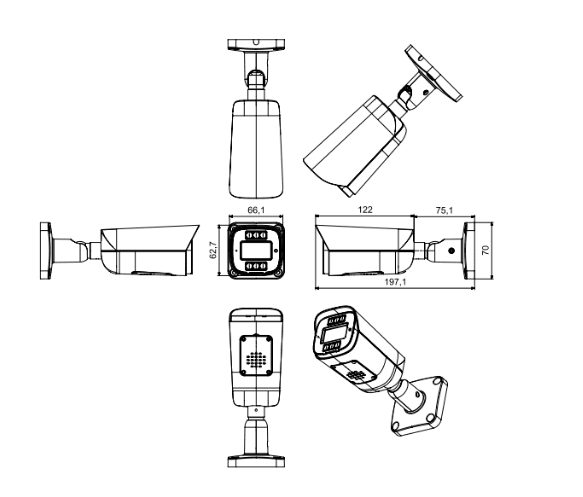

199.2*65.4*66.2mm |
|
| Weight |
N.W.:450g,G.W.:570g |
|
| * We may adopt the backup solution when the main solution chipset is in shortage. | ||
| We reserve the right to change products and specifications without prior notice. This information does not convey any license by any implication or otherwise under any patents or other rights. | ||
