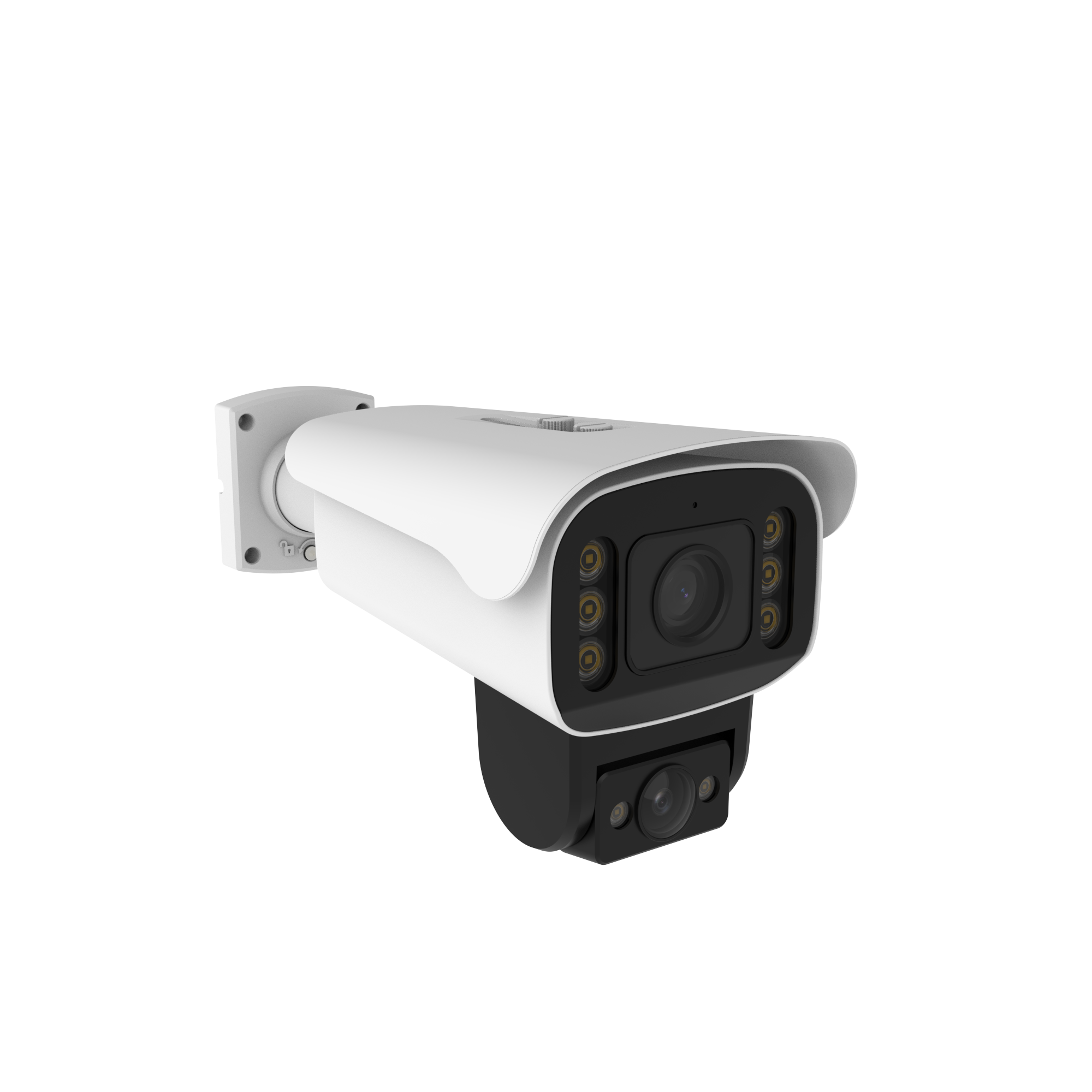

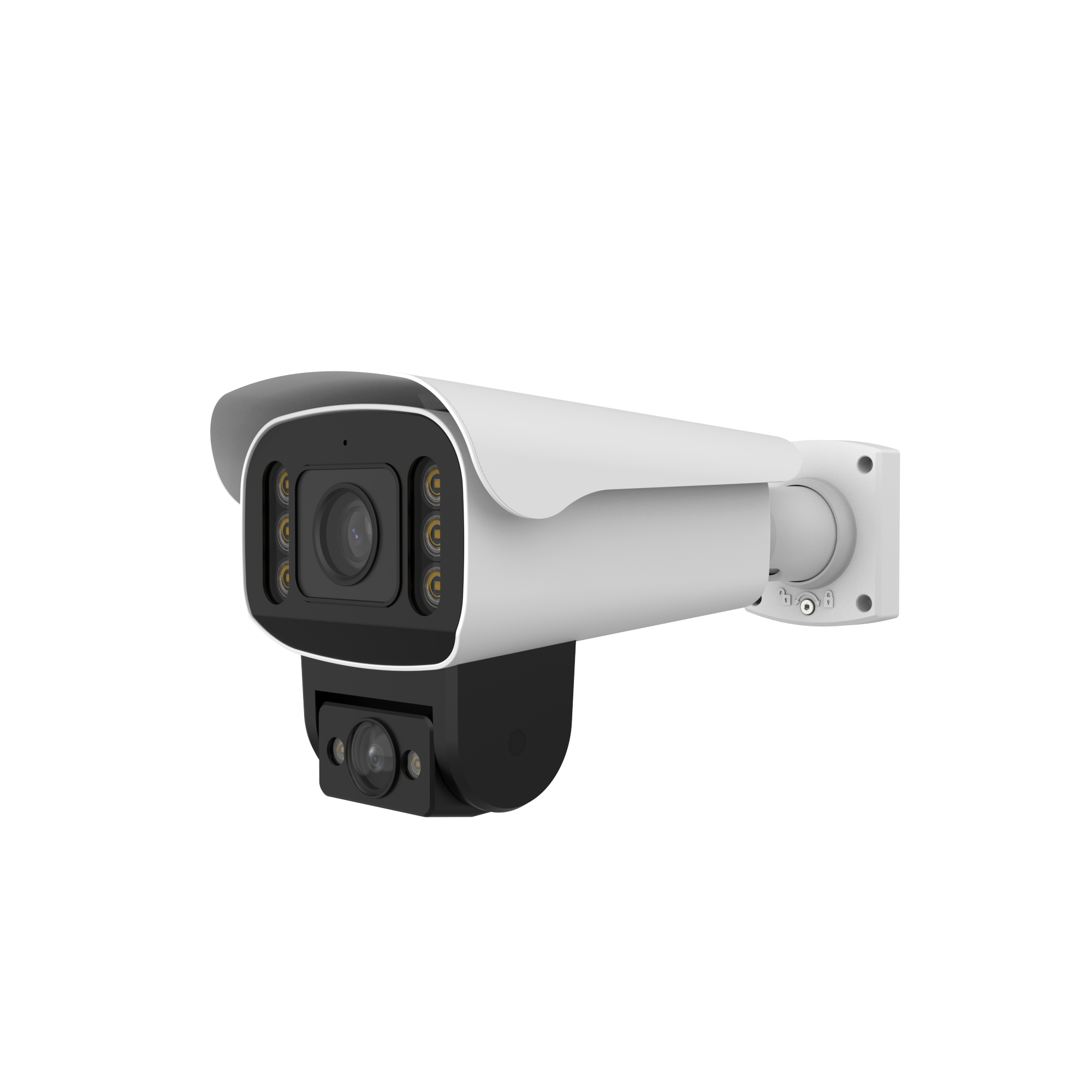

| > Adopts 1pcs 5MP progressive CMOS and 1pcs 4MP progressive CMOS, provides 5MP+4MP 30FPS Stream. > 140dB WDR, 0.001 Lux min. illumination. > Dual lenses: 2.8mm + 10-50mm optical Lens > Powerful IR LEDs, IR distance up to 100m. > PoE&DC12V. > Built-in waterproof high quality microphone and speaker. > Built-in micro SD slot for local recording, supporting Max. 512GB. > Built-in hardware reset. > Alarm 1in/1out. > IP67&IK10, -50°C ~65°C working temperature. > Customizable Video Analysis Based on AI ISP, with Highest Accuracy: Enabled AI Package as default: Face Recognition/Face Detection/People Counting/Human Detection/Vehicle Detection/Non-Motor Vehicle Detection/Smart Motion Detection/Line-Crossing Detection/Zone-Intrusion Detection/Loitering Detection/Opposite Direction Detection/Abnormal Audio Detection. Customized based on detailed requirements: License Plate Recognition, Super People Counting, Fire and Smoke Detection, Special Object Recognition such as birds. |
| Model | IPC-xB7-901-Z5 |
| Camera | |
| Main Solution | SSC379G+1*IMX664+1*IMX675 |
| Image Sensor CMOS | 1 pcs 1/2.8”5 Megapixel progressive scan CMOS 1 pcs 1/1.8”4 Megapixel progressive scan CMOS |
| Effective Pixels | 1 pcs: 2592*1920 4 pcs: 1920*1080 |
| Min. Illumination | 0.005Lux @ (F1.6, AGC ON), 0 Lux with IR ON |
| Shutter | 1/2s-1/50,000s |
| Lens | 2.8mm + 10-50mm optical Lens |
| Day&Night | IR-CUT Auto Switch, Manual Switch, Timing Switch |
| DNR | 3D Digital Noise Reduction |
| WDR | Yes, real WDR |
| Compression Standard | |
| Codec | H.265+/H.264+/H.265/H.264/MJPEG |
| Data Rate -Main | 256-8000kbps |
| Data Rate -Sub | 50-2048kbps |
| Audio Compression | G.711A/G.711U/AAC/PCM/G.726 |
| Audio Record | Yes |
| Image | |
| Max. Resolution | 5MP(2560*1920) |
| Frame Rate | 30FPS |
| Features | 3DNR, AWB, AGC, BLC, Defog, ROI, Motion Detection, Privacy Masking |
| Image Adjustment | Mirroring, Saturation, Brightness, Sharpness, Contrast Adjustment, Exposure, Shutter, IRIS, LDC etc. |
| Network | |
| Protocols | TCP/IP, UDP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP; SNMP v1/v2/v3, IEEE802.1X, IPv4/v6; Bonjour; SIP, ICMP, IGMP, QoS, SSL/TLS; |
| Compatibility | ONVIF (Profile S/Profile G/ Profile T); CGI; |
| HIKVISION/Dahua/Uniview/XM; | |
| RTMP, RTSP, NFS, VoIP, TS streaming | |
| HTTP Streaming/HTTP Notification | |
| AI Features | Customizable Video Analysis Based on AI ISP, with Highest Accuracy: Default: Face Recognition/Super People Counting/Face Detection/Human Detection/Vehicle Detection/Non-Motor Vehicle Detection/Smart Motion Detection/Line-Crossing Detection/Zone-Intrusion Detection/Loitering Detection/Opposite Direction Detection/Abnormal Audio Detection. Customized based on detailed requirements: License Plate Recognition, Accurate Fire Detection, Special Object Recognition such as birds. |
| Interface | |
| Network | RJ-45 LAN Port |

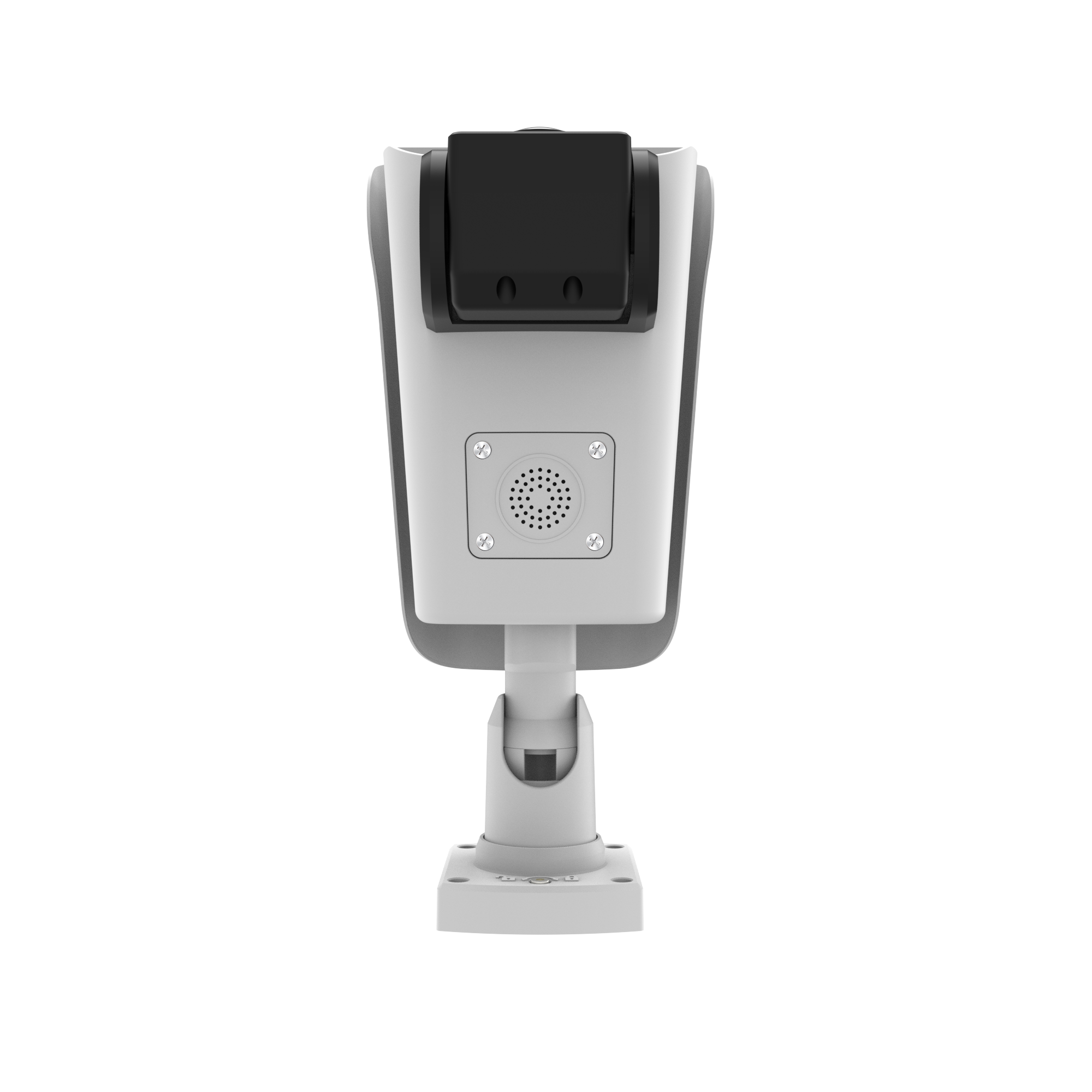

| Audio | Built-in microphone and speaker |
| Alarm | Alarm in/out |
| Local Recording | Built-in micro SD slot, supporting max. 512GB |
| Hardware rest | Yes, Built-in reset button |
| General | |
| Color | White |
| Accessories | Printed Quick Start, Installation Kits |
| Power Supply | POE&DC12V |
| Work Humidity | 10%-90% |
| Operation Temperature | -40℃-60℃ |
| Surge Protection | External/Built-in SPD |
| Proof | IP67 & IK10 |
| Power Consumption | Max. 15W |
| Size | 303.4*149.4*137.5mm |
| Weight | N.W.: 880g, G.W.: 960g |
| * We may adopt the backup solution when the main solution chipset is in shortage. | |
| We reserve the right to change products and specifications without prior notice. This information does not convey any license by any implication or otherwise under any patents or other rights. | |
