> QHD 1440P Video and Audio
> 24/7 Free Live Streaming
> Free Smart Alerts (Selectable person, pets, intruder, abnormal sounds and motion)
> Free App for Android and iPhone
> Recording to installed Micro SD card, and Cloud Storage (with plan)
> High Power Infrared Led Cut Filter
> Variable Bitrate Compression and AI ISP
> 0.5TOPS NPU built-in with Deep Learning Algorithm
> Encryption at Rest & in Transit
> 30 Frames/sec, H.265 Encoding
> AI ISP to get Super High Definition and Ultra Clarity at Day and Night
> AI NPU to support higher accuracy detection to less the false alarms
> Focused on indoor applications: person/Pets/intruder/abnormal sounds and motion
> 2.8mm/3.6mm Fixed lens, 120° ultra-wide field of view
> One Click to Call button, to call APP directly for help!
> Internal Mic: audio pick-up and 2-way talking
> Internal Speaker: 2-way talking, Siren for sounds alarm
> Micro SD slot: Maximum 256GB Micro SD card supported
> Hardware reset: to reset the camera to the factory status
> Wi-Fi Standard: IEEE802.11b, 802.11g, 802.11n
> 2.4 GHz ~ 2.4835GHz
> Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
> Multiple Recording Options: 256GB SD Card, NVR, NFS, FTP Servers, Cloud, PC Clients and Mobile APP
> Type-C USB DC5V Power
> Battery Capacity: 1600mAh
|
Model |
IPC-BJ1-1500 |
IPC-BJ1-1200 |
|
Camera |
||
|
Main Solution |
SSC377+GC4653 |
SSC377+GC2063 |
|
Image Sensor CMOS |
1/3’’ 5Megapixel |
1/2.9’’ 2Megapixel |
|
Effective Pixels |
2560*1920 |
1920*1080 |
|
Min. Illumination |
0. 01Lux (F1.8, Color), 0 Lux (F1.8, IR ON) |
|
|
Shutter |
1/2s-1/50,000s |
|
|
Lens |
2.8mm/3.6mm fixed lens |
|
|
Day&Night |
ICR, Smart IR, Controllable IR LEDs |
|
|
DNR |
3D Digital Noise Reduction |
|
|
WDR |
Yes, digital WDR |
|
|
Compression Standard |
||
|
Codec |
H.265/H.264/MJPEG |
|
|
Data Rate -Main |
256-8000kbps |
256-8000kbps |
|
Data Rate -Sub |
50-1000kbps |
50-1000kbps |
|
Audio Compression |
G.711A/G.711U/AAC/PCM/G.726 |
|
|
Audio Record |
Yes |
|
|
Image |
||
|
Max. Resolution |
5MP(2560*1920) |
2MP(1920*1080) |
|
Frame Rate |
25FPS |
30FPS |
|
Features |
DWDR, 3D DNR, AGC, MGC, AWB, ROI, Motion Detection, Privacy Masking |
|
|
Image Adjustment |
Mirroring, Saturation, Brightness, Sharpness, Contrast Adjustment, Exposure, DWDR, Shutter, IRIS, LDC etc. |
|
|
Network |
||
|
Protocols |
TCP/IP, UDP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP; SNMP v1/v2/v3, IEEE802.1X, IPv4/v6; Bonjour; SIP, ICMP, IGMP, QoS, SSL/TLS; |
|
|
Compatibility |
ONVIF (Profile S/Profile G/ Profile T); CGI; |
|
|
AI Features |
Smart Detection based on CV |
|
|
Interface |
||
|
Network |
No RJ-45 LAN Port |
|
|
Wifi |
Yes, 2.4GHz single band as default, 2.4GHz&5GHz dual band optional |
|
|
Audio Input |
Built-in microphone |
|
|
Audio Output |
Built-in speaker |
|
|
Local Recording |
Built-in micro SD slot, supporting maximum 256GB |
|
|
Hardware Reset |
Yes |
|
|
General |
||
|
Color |
White |
|
|
Accessories |
Printed User Manual, Installation Kits, CD or Download Link QR Code Stickers |
|
|
Power Supply |
Rechargeable Battery |
|
|
Work Humidity |
10%-90% |
|
|
Operation Temperature |
-30°C ~50°C |
|
|
Proof |
Plastic, IP66 water proof, Indoor&Outdoor |
|
|
Power Consumption |
Max. 5W |
|
|

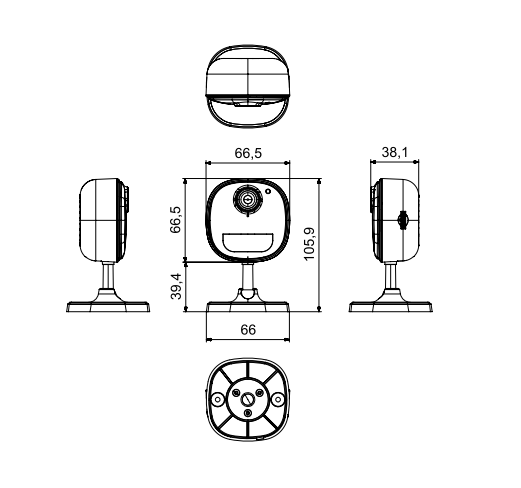

Size |
105.9mm*66.5mm*38.1mm |
|
|
Weight |
N.W.: 135g, G.W.: g |
|
|
* We may adopt the backup solution when the main solution chipset is in shortage. |
||
