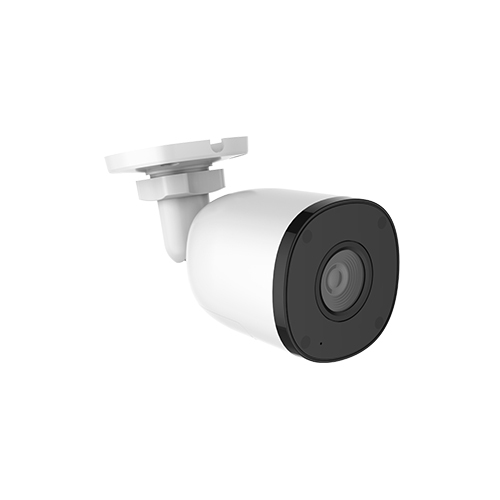

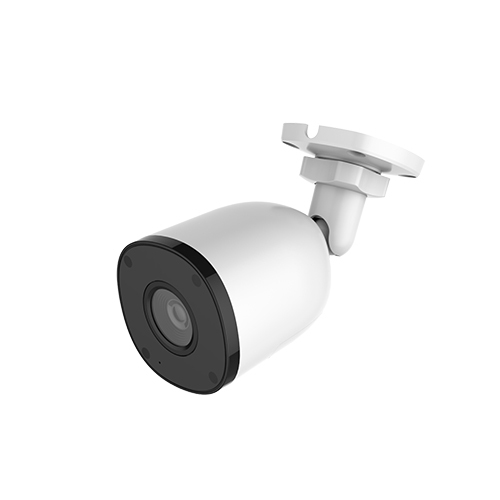

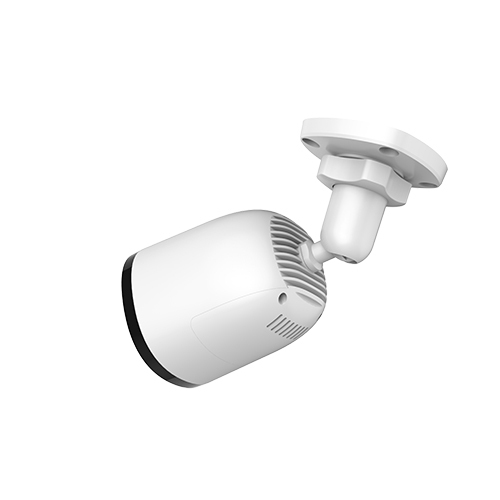

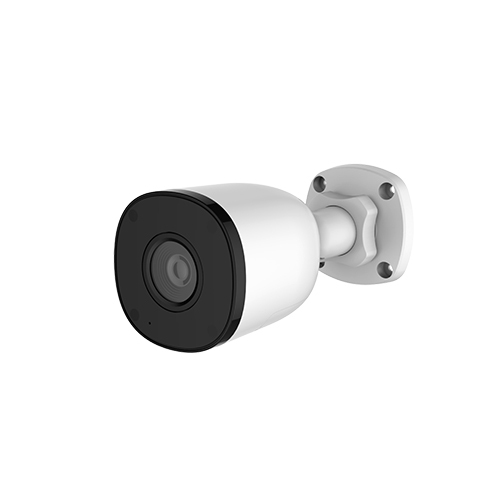

2MP/5MP/8MP Indoor and Outdoor Mini Bullet WiFi Camera

Item No.: IPC-C2-1x00W
> Super high definition 2MP/5MP/8MP and ultra clarity at night.
> 2.8mm/3.6mm fixed lens, IR distance max. 25m.
> WiFi&DC12V, power adaptor included in the package.
> IP66 for indoor and outdoor, -30°C ~50°C working temperature.
> Smart Detection based on CV.
  • Resolution:
    8MP 20FPS
    5MP 25FPS
    2MP 30FPS
  • WiFi:
    2.4GHz WiFi
    2.4GHz&5GHz WiFi
Description Specification Dimensions(mm)
Description

> Adopts 2MP/5MP/8MP progressive CMOS, provides 2MP 30FPS/5MP 25FPS/8MP 20FPS Stream.

> WDR, 0.01 Lux min. illumination.

> 2.8mm/3.6mm fixed lens.

> 4pcs of array IR, IR distance up to 25m.

> WiFi&DC12V, power adaptor included in the package.

> Built-in microphone and speaker for two-way talk.

> Built-in micro SD slot for local recording.

> Look at your home at any time and from anywhere with remote live video streaming via mobile App.

> IP66 for indoor and outdoor, -30°C ~50°C working temperature.

> Smart Detection based on CV

    Detection: Human/Vehicle Detection

    Perimeter Protection: Tripwire/Intrusion by human or vehicle

    Smart MD: Motion/Human/Vehicle

    Face Detction / Baby Crying detection / Pet Detection optional.



Specification

Model

IPC-C2-1800W

IPC-C2-1500W

IPC-C2-1200W

Camera

Main Solution

T40N+SC8238

SSC377+GC4653

SSC377+GC2063 (No Corridor)

Image Sensor CMOS

1/2.7’’ 8Megapixel

1/3’’ 4Megapixel

1/2.9’’ 2Megapixel

Effective Pixels

3840*2160

2560*1920

1920*1080

Min. Illumination

0. 01Lux (F1.8, Color), 0 Lux (F1.8, IR ON)

Shutter

1/2s-1/50,000s

Lens

2.8mm/3.6mm fixed lens

Day&Night

ICR, Smart IR, Controllable IR LEDs

DNR

3D Digital Noise Reduction

WDR

Yes, digital WDR

Compression Standard

Codec

H.265/H.264/MJPEG

Data Rate -Main

256-16000kbps

256-8000kbps

256-8000kbps

Data Rate -Sub

50-1000kbps

50-1000kbps

50-1000kbps

Audio Compression

G.711A/G.711U/AAC/PCM/G.726

Audio Record

Yes


Max. Resolution

8MP(3840*2160)

5MP(2560*1920)

2MP(1920*1080)

Frame Rate

20FPS

25FPS

30FPS

Features

DWDR, 3D DNR, AGC, MGC, AWB, ROI, Motion Detection, Privacy Masking

Image Adjustment

Mirroring, Saturation, Brightness, Sharpness, Contrast Adjustment, Exposure, DWDR, Shutter, IRIS, LDC etc.

Network

Protocols

TCP/IP, UDP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP; SNMP v1/v2/v3, IEEE802.1X, IPv4/v6; Bonjour; SIP, ICMP, IGMP, QoS, SSL/TLS;

Compatibility

ONVIF (Profile S/Profile G/ Profile T); CGI;
HIKVISION/Dahua/XM;
RTMP, RTSP, NFS, VoIP, TS streaming
HTTP Streaming/HTTP Notification

AI Features

Smart Detection based on CV
Detection: Human/Vehicle Detection
Perimeter Protection: Tripwire/Intrusion by human or vehicle
Smart MD: Motion/Human/Vehicle

Interface

Network

No RJ-45 LAN Port

Wifi

Yes, 2.4GHz single band as default, 2.4GHz&5GHz dual band optional

Audio Input

Built-in microphone

Audio Output

Built-in speaker

Local Recording

Built-in micro SD slot, supporting maximum 256GB

Hardware Reset

Yes

General

Color

White

Accessories

Printed User Manual, Installation Kits, CD or Download Link QR Code Stickers

Power Supply

USB DC5V, power adaptor included

Work Humidity

10%-90%

Operation Temperature

-30°C ~50°C

Proof

Plastic, IP66 water proof, Indoor&Outdoor

Power Consumption

Max. 6W

Size

161.2mm*90.5mm*74mm

Weight

N.W.: 270g, G.W.: 350g

* We may adopt the backup solution when the main solution chipset is in shortage.
We reserve the right to change products and specifications without prior notice. This information does not convey any license by any implication or otherwise under any patents or other rights.

Dimensions(mm)
