> Adopts 2MP/5MP progressive CMOS, provides 2MP 30FPS/5MP 25FPS Stream.
> WDR, 0.01 Lux min. illumination.
> 2.8mm/3.6mm fixed lens.
> 6pcs of IR, IR distance up to 10m.
> WiFi&DC5V, power adaptor included in the package.
> Built-in microphone and speaker for two-way talk.

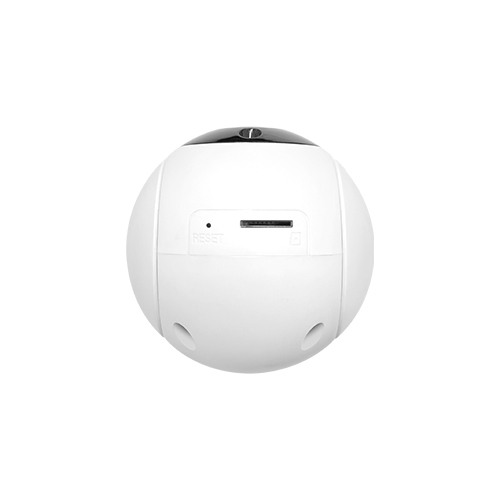

> Built-in micro SD slot for local recording.
> With 355° pan and 120° tilt, we can monitor a surprisingly large area with a single security camera.
> Look at your home at any time and from anywhere with remote live video streaming via mobile App.
> -10°C ~50°C working temperature.
> Smart Detection based on CV
Detection: Human/Vehicle Detection
Perimeter Protection: Tripwire/Intrusion by human or vehicle
Smart MD: Motion/Human/Vehicle
Face Detction / Baby Crying detection / Pet Detection optional.
|
Model |
IPC-J3T-1500 |
IPC-J3T-1200 |
|
Camera |
||
|
Main Solution |
T31X+GC4653 |
T31N+GC2063 |
|
Image Sensor CMOS |
1/3’’ 5Megapixel |
1/2.9’’ 2Megapixel |
|
Effective Pixels |
2592*1944 |
1920*1080 |
|
Min. Illumination |
0.01Lux @ (F1.8, Color), 0 Lux (F1.8, IR ON) |
|
|
Shutter |
1/2s-1/50,000s |
|
|
Lens |
2.8/3.6mm fixed lens |
|
|
Day&Night |
IR-CUT Auto Switch, Manual Switch, Timing Switch |
|
|
DNR |
3D Digital Noise Reduction |
|
|
WDR |
Yes, Digital WDR |
|
|
Compression Standard |
||
|
Codec |
H.265/H.264/MJPEG. |
|
|
Data Rate -Main |
256-8000kbps |
256-8000kbps |
|
Data Rate -Sub |
50-1000kbps |
50-1000kbps |
|
Audio Compression |
G.711A/G.711U/AAC/PCM/G.726 |
|
|
Audio Record |
Yes |
|
|
Image |
||
|
Max. Resolution |
5MP(2592*1944) |
2MP(1920*1080) |
|
Frame Rate |
25FPS |
30FPS |
|
Features |
DWDR, 3D DNR, AGC, MGC, AWB, ROI, Motion Detection, Privacy Masking |
|
|
Image Adjustment |
Mirroring, Saturation, Brightness, Sharpness, Contrast Adjustment, Exposure, DWDR, Shutter, IRIS, LDC etc. |
|
|
Network |
||
|
Protocols |
TCP/IP, HTTP, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, |
|
|
Compatibility |
HTTP CGI, ONVIF |
|
|
Interface |
||
|
Network |
RJ-45 LAN Port |
|
|
Wifi |
Yes, 2.4GHz single band as default, 2.4GHz&5GHz dual band optional |
|
|
Audio |
Built-in Microphone |
|
|
Alarm |
Alarm in/out |
|
|
Local Recording |
Built-in micro SD slot, supporting max. 256GB |
|
|
Hardware Reset |
Yes |
|
|
General |
||
|
Color |
White&Black |
|
|
Accessories |
Printed User Manual, Installation Kits |
|
|
Power Supply |
USB DC5V, power adaptor included |
|
|
Work Humidity |
10%-90% |
|
|
Operation Temperature |
-10℃-50℃ |
|
|
Waterproof |
Indoor |
|
|
Power Consumption |
Max. 5.5W |
|
|
Size |
Φ71.8*118mm |
|
|
Weight |
N.W. 350g, G.W. 450g |
|
|
We reserve the right to change products and specifications without prior notice. This information does not convey any license by any implication or otherwise under any patents or other rights. |
||
