5MP/2MP WIFI Cube Value IR Network Camera

Item No.: IPC-xG3P-3x30-W
> WDR 120dB, 0.005 Lux min. illumination, H.265+/H.264+/H.265/H.264/MJPEG.
> WiFi, 2.4GHz Single Band or 2.4&5GHz Dual Band.
> 2.8mm/3.6mm/6.0mm fixed lens, distance 10m.
> DC12V, built-in mic, speaker, two-way audio supported.
> Built-in PIR hardware motion detector.
> Built-in micro SD slot, hardware reset.
> -40°C ~60°C working temperature.
> Smart Detection based on CV.
  • Resolution:
    5MP 30FPS
    2MP 30FPS
Description Specification Dimensions(mm)
Description

> Adopts 5MP/2MP progressive CMOS, provides 5MP 30FPS/2MP 30FPS Stream.

> WiFi, 2.4GHz Single Band or 2.4&5GHz Dual Band.

> WDR 120dB, 0.005 Lux min. illumination.

> 2.8mm/3.6mm/6.0mm fixed lens.

> 1pcs of array IR LED, IR Distance 10m.

> DC12V.

> Built-in waterproof high quality microphone (-32dB), speaker, two-way audio supported.

Built-in PIR hardware motion detector.

> Built-in micro SD slot for local recording, supporting Max. 128GB.

> Built-in hardware reset.

> -40°C ~60°C working temperature.

Smart Detection based on CV

     Detection: Human/Vehicle Detection

     Perimeter Protection: Tripwire/Intrusion by human or vehicle

     Smart MD: Motion/Human/Vehicle



Specification

Model IPC-MG3P-3530-W IPC-MG3P-3230-W
Camera
Main Solution SSC337DE+IMX335 SSC335+SC200AI
Image Sensor CMOS 1/2.8’’ 5Megapixel 1/2.8’’ 2Megapixel
Effective Pixels 2560*1920 1920*1080
Min. Illumination  0.005ux @ (F1.2, AGC ON), 0 Lux with IR ON
Shutter 1/2s-1/50,000s
Lens 2.8mm/3.6mm/6.0mm Fixed Lens Optional
Day&Night ICR, Smart IR, Controllable IR LEDs
DNR 3D Digital Noise Reduction
WDR Yes, real WDR 120dB
Compression Standard
Codec H.265+/H.264+/H.265/H.264/MJPEG.
Data Rate -Main 256-8000kbps 256-8000kbps
Data Rate -Sub 50-1000kbps 50-1000kbps
Audio Compression G.711A/G.711U/AAC/PCM/G.726
Audio Record Yes
Max. Resolution 5MP(2560*1920) 2MP(1920*1080)
Frame Rate 30/25FPS 30/25FPS
Features DWDR, 3D DNR, AGC, MGC, AWB, ROI, Motion Detection, Privacy Masking
Image Adjustment Mirroring, Saturation, Brightness, Sharpness, Contrast Adjustment, Exposure, DWDR, Shutter, IRIS, LDC etc.
Network
Protocols TCP/IP, UDP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP; SNMP v1/v2/v3, IEEE802.1X, IPv4/v6; Bonjour; SIP, ICMP, IGMP, QoS, SSL/TLS;
Compatibility ONVIF (Profile S/Profile G/ Profile T); CGI;
HIKVISION/Dahua/XM;
RTMP, RTSP, NFS, VoIP, TS streaming
HTTP Streaming/HTTP Notification
AI Features Smart Detection based on CV
Detection: Human/Vehicle Detection
Perimeter Protection: Tripwire/Intrusion by human or vehicle
Smart MD: Motion/Human/Vehicle
Interface
Network RJ-45 LAN Port
Wireless Network IEEE 802.11bgn, 2.4GHz sigle band or 2.4&5GHz Dual Band, Internal WiFi antenna
Audio Built-in microphone, speaker, two-way audio supported
Alarm Built-in PIR hardware motion detector
Local Recording Built-in micro SD slot for local recording, supporting max. 128GB
Hardware Reset Yes, Built-in reset button
General
Color White
Accessories Printed User Manual, Installation Kits, CD or Download Link QR Code Stickers
Power Supply DC12V, power adaptor included
Work Humidity 10%-90%
Operation Temperature -40℃-60℃
Surge Protection External/Built-in SPD
Proof For indoor
Power Consumption Max. 17W
Size 117.5*61.5*42mm
Weight N.W.: g, G.W.: g
* We may adopt the backup solution when the main solution chipset is in shortage.
We reserve the right to change products and specifications without prior notice. This information does not convey any license by any implication or otherwise under any patents or other rights.

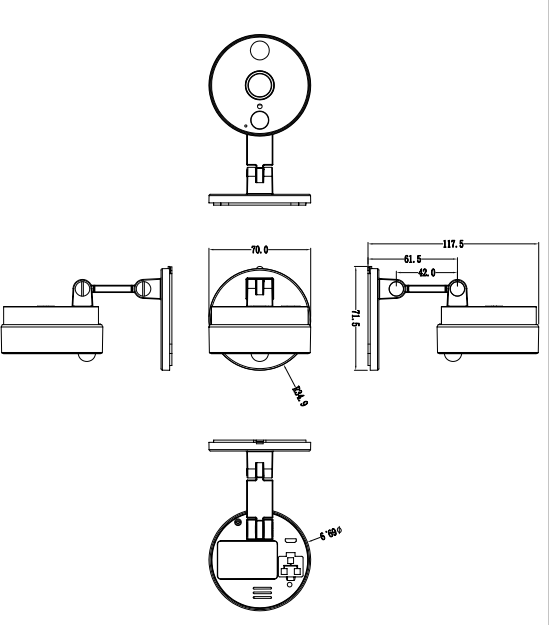

Dimensions(mm)
